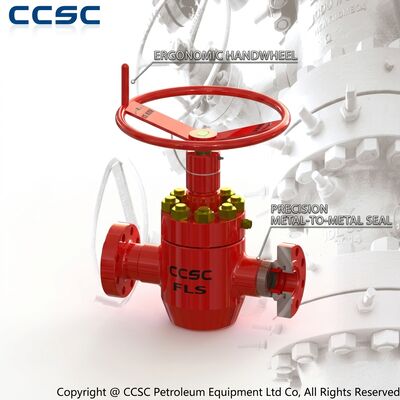

Electric Actuator High Pressure Gate Valve Designed for Working Temperatures 75°F to 350°F Performance in Various Systems

Product Description:

The High Pressure Gate Valve is an essential component designed to control the flow of liquids and gases in high-pressure systems. Engineered for durability and reliability, this valve is ideal for applications requiring precise flow regulation under demanding conditions. With its robust construction and advanced features, the High Pressure Gate Valve ensures optimal performance in various industrial environments.

One of the key features of the High Pressure Gate Valve is its versatile operation. It can be operated manually or equipped with an electric actuator for automated control. The manual operation offers simplicity and ease of use, making it suitable for applications where quick adjustments are necessary. On the other hand, the electric actuator option provides enhanced precision and convenience, allowing remote operation and integration into automated systems. This dual operation capability makes the High Pressure Gate Valve adaptable to a wide range of industrial requirements.

The valve is designed to withstand extreme temperature ranges, making it suitable for use in harsh environments. It can operate efficiently within a temperature range from -29°C to 425°C. This wide temperature tolerance ensures that the High Pressure Gate Valve can be utilized in applications involving steam, hot water, oil, and other high-temperature fluids without compromising its structural integrity or performance.

In terms of aesthetics and safety, the High Pressure Gate Valve is coated in a distinctive red color. This bright coloration not only enhances the valve's visibility but also helps in quick identification during maintenance and emergency situations. The red finish is durable and resistant to corrosion, ensuring that the valve maintains its appearance and functionality over time, even under challenging conditions.

Quality and reliability are paramount in the design of the High Pressure Gate Valve. It is rigorously tested according to the API 598 standard, which governs valve inspection and testing procedures. Compliance with API 598 guarantees that the valve meets stringent requirements for pressure integrity, leakage, and operational performance. This certification provides customers with confidence that the valve will perform reliably under high-pressure conditions, ensuring system safety and efficiency.

The High Pressure Gate Valve is available in pressure service levels ranging from PSL 1 to PSL 4. This range covers various pressure and temperature classes, allowing the valve to be customized for specific system requirements. Whether the application involves low or extremely high pressure, the High Pressure Gate Valve can be tailored to meet those demands, offering flexibility and adaptability for diverse industrial processes.

Constructed from high-quality materials, the High Pressure Gate Valve offers exceptional strength and longevity. Its design minimizes pressure drops and ensures smooth, unobstructed flow when fully open. The gate mechanism provides a tight seal when closed, preventing leakage and ensuring system integrity. This combination of features makes the valve an excellent choice for critical applications in oil and gas, petrochemical, power generation, and other heavy industries.

In summary, the High Pressure Gate Valve is a reliable, durable, and versatile valve solution for controlling fluid flow in high-pressure environments. With options for manual or electric actuator operation, a wide temperature range of -29°C to 425°C, and a striking red color for easy identification, it meets the highest standards of quality and performance. Tested according to API 598 and available in PSL 1 to PSL 4 pressure classes, this valve guarantees safety, efficiency, and longevity in demanding industrial applications. Choosing the High Pressure Gate Valve means investing in a product designed to deliver exceptional performance and reliability throughout its service life.

Features:

• Product Name: High Pressure Gate Valve
• Testing Standard: API 598
• Working Temperature: 75°F - 350°F
• Operation: Manual / Electric Actuator
• Color: Red
• Application: Oil & Gas, Petrochemical industries
• Durable Gate Valve design suitable for high pressure environments
• Reliable sealing performance of the Gate Valve ensures leak-free operation
• Easy to operate Gate Valve available with manual or electric actuator options

Technical Parameters:

Applications:

The High Pressure Gate Valve is an essential component widely used in various industrial applications where reliable shut-off and flow control are critical. Designed with a robust construction and a sealing material made of PTFE, this valve ensures excellent chemical resistance and durability, making it suitable for handling aggressive media under high pressure conditions. With a pressure service level (Psl) ranging from 1 to 4, the High Pressure Gate Valve can effectively operate in environments requiring precise pressure management, ensuring safety and efficiency in system operations.

The size of this Gate Valve is 2 9/16", which makes it ideal for medium to large pipeline installations. Its flanged connection type facilitates secure and leak-proof installation, allowing for easy maintenance and replacement without disrupting the entire pipeline system. The flanged design also supports high-pressure applications by providing a strong mechanical joint that can withstand substantial forces during operation.

One of the key application occasions for the High Pressure Gate Valve is in the oil and gas industry, where it is used to control the flow of crude oil, natural gas, and refined products. The valve’s PTFE seal material ensures compatibility with various hydrocarbons and prevents leakage, which is critical in maintaining environmental safety and operational integrity. Additionally, the valve’s compliance with the API 598 testing standard guarantees that it meets strict criteria for pressure testing, ensuring reliability and performance under high-pressure conditions.

In power plants, the Gate Valve is employed in steam and water pipelines to regulate the flow efficiently. Its high-pressure capabilities and robust sealing make it suitable for use in harsh thermal environments. Similarly, in chemical processing plants, the valve’s PTFE seal offers resistance against corrosive chemicals, enabling safe and efficient control of hazardous fluids.

Other scenarios where the High Pressure Gate Valve excels include water treatment facilities, mining operations, and marine applications. In all these instances, the valve provides dependable shut-off capabilities and smooth operation, contributing to the overall safety and productivity of the system.

Overall, the High Pressure Gate Valve is a versatile and reliable solution for a wide range of industrial scenarios that require durable, leak-proof valves capable of handling high pressure and aggressive media. Its combination of PTFE sealing, flanged connections, and stringent testing standards makes it an indispensable choice for professionals seeking quality and performance in gate valve applications.

Customization:

Our High Pressure Gate Valve product offers extensive customization services to meet your specific requirements. Manufactured using forging processing type, each valve ensures superior strength and durability under extreme conditions. The welded body design provides enhanced structural integrity, making it ideal for high-pressure applications.

We provide both manual and electric actuator operation options for the High Pressure Gate Valve, allowing you to choose the best control method suited for your system. Additionally, our valves are tested rigorously according to the API 598 standard, guaranteeing reliable performance and safety.

With pressure service levels (PSL) ranging from 1 to 4, our High Pressure Gate Valve customization services ensure optimal compatibility with various pressure requirements. Trust our expertise to deliver a High Pressure Gate Valve tailored precisely to your operational needs.

Support and Services:

Our High Pressure Gate Valve is designed to provide reliable and efficient performance in demanding industrial applications. To ensure optimal operation, it is important to follow proper installation, maintenance, and troubleshooting procedures.

Installation: Before installation, inspect the valve for any damage that may have occurred during shipping. Ensure that the pipeline is clean and free from debris. Align the valve properly with the pipeline to prevent stress on the valve body and avoid leakage. Use appropriate gaskets and tighten flange bolts uniformly to the recommended torque specifications.

Operation: Operate the valve by turning the handwheel or actuator slowly to avoid water hammer or pressure surges. The valve is designed for fully open or fully closed positions; avoid throttling as it can cause damage to the gate and seat surfaces.

Maintenance: Regular inspection is recommended to detect any signs of wear, corrosion, or leakage. Lubricate the stem and other moving parts periodically to ensure smooth operation. If the valve is used in abrasive or corrosive environments, more frequent maintenance may be necessary.

Troubleshooting: Common issues include leakage, difficulty in operation, or valve sticking. Leakage can often be resolved by tightening flange bolts or replacing worn seals. Difficulty in operation may be caused by debris or corrosion; cleaning and lubrication can help. If the valve sticks, check for misalignment or damage to internal components and repair or replace parts as needed.

For detailed technical assistance and spare parts information, please refer to the product manual or contact our support team.

FAQ:

Q1: What materials are used to manufacture the High Pressure Gate Valve?

A1: The High Pressure Gate Valve is typically made from high-grade stainless steel or carbon steel to ensure durability and resistance to high pressure and corrosion.

Q2: What pressure ratings does the High Pressure Gate Valve support?

A2: This valve is designed to handle pressures up to 4000 PSI, making it suitable for various high-pressure industrial applications.

Q3: What sizes are available for the High Pressure Gate Valve?

A3: The High Pressure Gate Valve is available in a range of sizes from 1/2 inch to 12 inches to accommodate different piping requirements.

Q4: Can the High Pressure Gate Valve be used for both liquid and gas applications?

A4: Yes, the valve is designed for reliable operation with both liquid and gas media, providing a tight seal to prevent leaks under high pressure.

Q5: How is the High Pressure Gate Valve operated?

A5: The valve is typically operated manually using a handwheel, but it can also be fitted with actuators for automated control in industrial systems.
